Olymp-HB-TPU-85

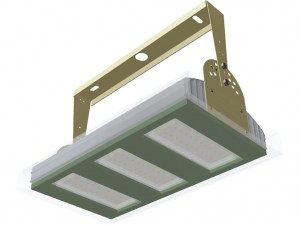

Specialized LED luminaire with an additional protective acrylic glass coated with thermoplastic polyurethane for sand blasting chambers.
Specialized LED luminaire with an additional protective acrylic glass coated with thermoplastic polyurethane, which is able to withstand the harshest environmental and operating conditions, such as sandblasting chambers.
The protective glass is easily mounted on the lamp and allows you to replace it right on the spot without any tools.
GENERAL DATA |
|
|
Luminaire type |
Highbay |
|
Installation |
Suspended, surfaced |
|
Environment |
Indoor, outdoor |
|
Body material |
Aluminium alloy |
|
Optical material |
Polycarbonate (PC) |
|
Protection glass |
Acrylic with Termopolyuretan (TPU) |
|
Finish color |
Silver |
|
Standard |
CE |
|
IP rating |
IP 65 |
|
Beam angle |
120° |
|
Operating |
-45 ~ +40°C |
|
Dimensions (LxWxH) |
420 x 240 x 275 mm |
|
Net weight |
6,8 kg |
|
Warranty |
5 years |
ELECTRICAL DATA |
|
|
Power |
85 W |
|
Input volt |
100 - 305 Vac |
|
Frequency |
50/60 Hz |
|
Connections |
Live, Earth, Neutral |
|
Class |
I, must be earthed |
|
Lifespan |
50,000 hrs |
LIGHTING DATA |
|
|
Luminous flux |
8 400 | 9 865 lm w/o protection glass |
|
LED color |
4000K | 5000 K |
|
Color rendering index |
> 75 Ra |
Applications
- sandblasting chambers
- spray booths / painting workshops
- heavy duty industry
Features
- TPU tensile properties 250 kg/cm2
- TPU elongation 550%
- Clear or opal protection glass
- installation or replacement of protection glass without tools
- Samsung LEDs
- Helvar™ driver
- DALI / ZigBee control (optional)
