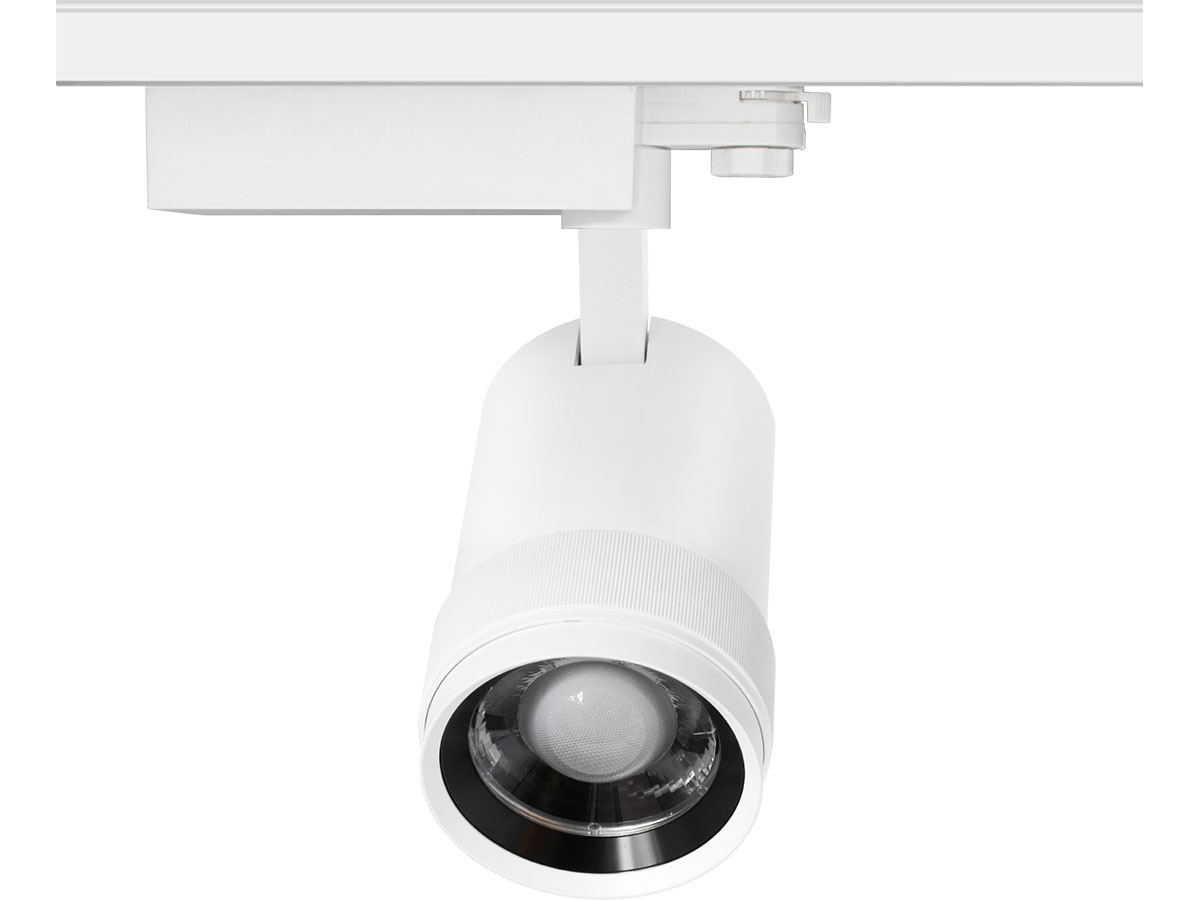

KVP-B1 (ONF)
Spotlight with zoom.
Options:
track, surface mount and recessed,
TRIAC, DALI, CASAMBI, RF remote control, 0/1-10V on the light housing or on the track adapter,
white color adjustment options: CASAMBI, RF remote control, switch on the lamp housing,
honeycomb, barn doors, softening lens cover, oval lens cover and wall washer.
Product options
|
Product code |
Dimming |
Power, W |
Lumen |
Color temperature |
CRI |
Installation |
Package |
|
KVP-B115 (ONF) |
NO-dim |
15 |
1300 |
2700K/ 3000K/ 4000K |
90/97 |
2/3/4 wire / Mounted / Recessed |
Track 18pcs 15.5kg/CTN 46.5*33.5*34cm V13.5 Mounted/ Recessed 18pcs 16.0kg/CTN 49.5*45.5*34cm V18.5 |
|
KVP-B120 (ONF) |
NO-dim |
20 |
1800 |
||||
|
KVP-B115 (TRB) |
TRIAC |
15 |
1300 |
||||
|
KVP-B120 (TRB) |
TRIAC |
20 |
1800 |
||||
|
KVP-B115 (DOL) |
Dimmer on lamp, 3~100% dim |
15 |
1300 |
||||
|
KVP-B120 (DOL) |
Dimmer on lamp, 3~100% dim |
20 |
1800 |
||||
|
KVP-B120 (INT) |
NO-dim, integrated adapter |
4 wire/3 phase only |
12pcs 11.0kg/CTN 49.5*37.6*34cm V15.5 |
||||
|
KVP-B120 (TRI) |
TRIAC, Integrated adapter |
||||||
|
KVP-B120 (DOA) |
Dimmer on adapter, Integrated adapter |
||||||
|
KVP-B120 (CAB) |
CASAMBI Brightness dim only |
||||||
|
KVP-B120 (DAB) |
DALI dim 6 wires, Brightness dim only |
6 wires rail GLOBAL or POWERGEAR |
12pcs 11.5kg/CTN 57.7*37.6*34cm V17.5 |
||||
|
KVP-B120 (RFC) |
RF Remote G201 |
1500 |
Turnable 2700~5700K |
90 |
2/3/4 wire track |
12pcs 13.5kg/CTN 49.5*45.5*34.5cm V18.5 |
|
|
KVP-B120 (CAC) |
CASAMBI dim & tunable white |
||||||
|
KVP-B120 (TRC) |
TRIAC & tunable white on lamp |
Tunable 2700K/ 3000K/ 4000K |
2/3/4 wire / Mounted / Recessed |
Available accessories: honeycomb, barn doors, softening lens cover, oval lens cover and wall washer.
|
SPECIFICATION |
|
|
Luminaire type |
spotlight |
|
Body material |
aluminum |
|
Finish color |
matt black/white |
|
Operating |
-20 ~ +40°C |
|
Dimensions |
85 mm 143 mm |
|
Net weight |
0,7 kg |
|
Warranty |
5 years |
|
Beam angle |
zoomable, 12~55° |
|
Input volt |
AC 220 - 240 V / 50Hz |
|
Power factor |
>0.92 |
|
Lifespan |
50 000 hrs |
|
Certificates |
CE-EMC, ROHS |
Applications
- museums
- galleries
- exhibition halls
- clothing stores
- stores and shops
- cafes and restaurants
Features
- art gallery level lighting
- zoom 12~60°
- big range of dimming options
